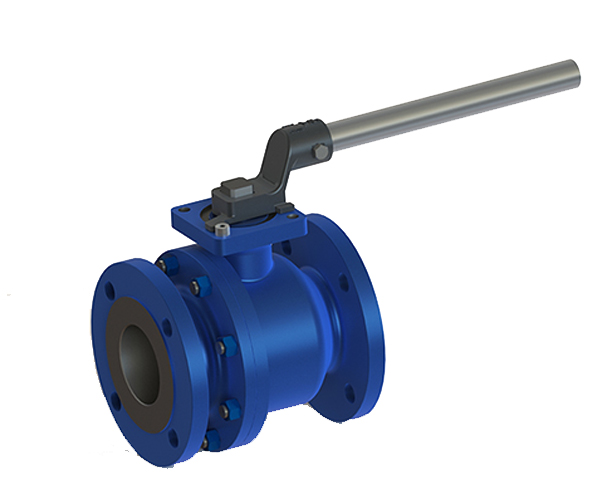

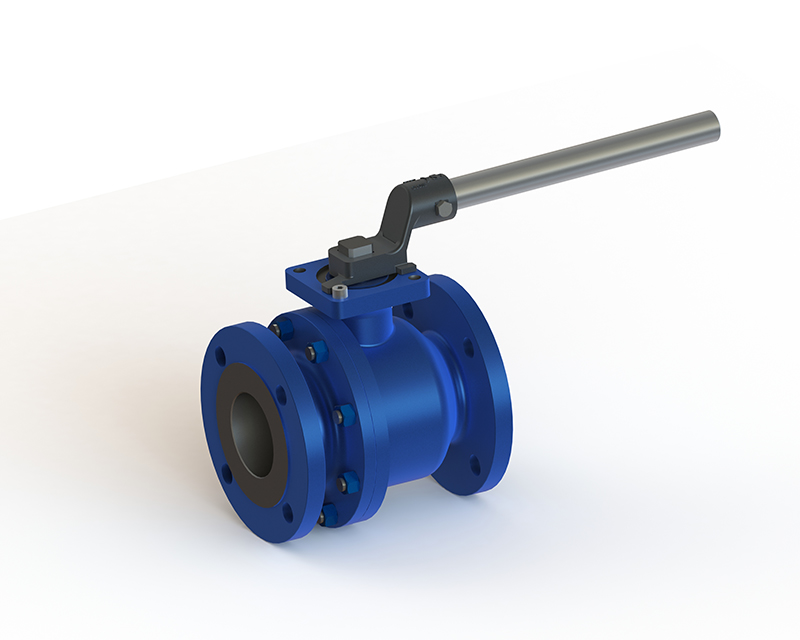

Cavity Filler Ball Valve

Enquire Now
Specifications
TYPE : Two Piece Zero Cavity Ball Valve
PORT : Full Bore
SIZE : 15 mm to 200mm NB
Pressure Rating :
ASME #150 PN 20
ASME#300 PN 50
ASME #600 PN 100
Temperature Range 35 Deg C to 280 Deg C (Soft Seated)
Body Materials Stainless Steel / Carbon Steel / Alloys
Design Standard API 6D rev 23; ISO 17292 rev 2004
End Flanges ASME B16.5 2013
Face to Face Dimension ASME B16.10 Rev 2009
Fire safe design API-607 Rev 2010
Testing API 598 Rev 2009
Sour Service NACE MOR 0175 Rev 2009
Documents BS/EN 10204-3.1 REV 2004
Other Information
Technical Details

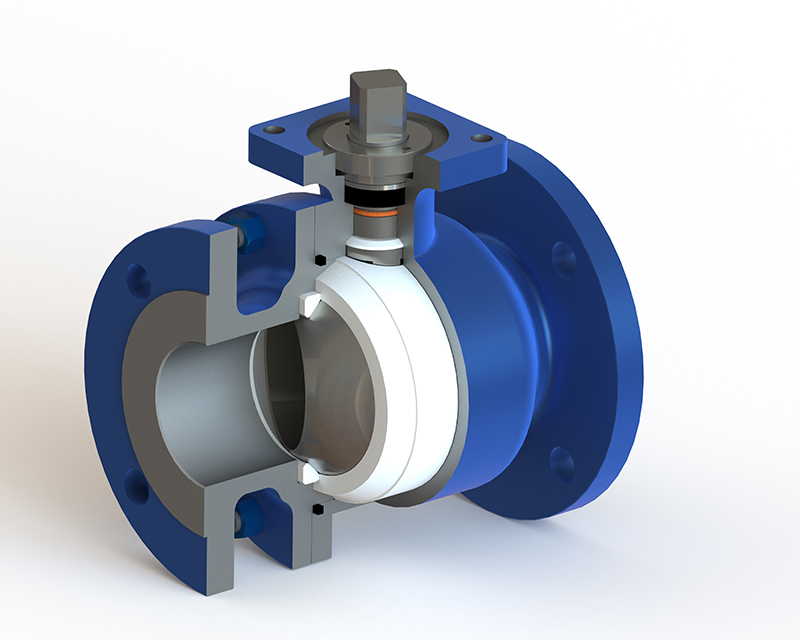

The Sankey Cavity filler ball valve can handle a vast variety of fluids, semisolid and almost any viscous media inpaint pulp, paper processing, FDA, Paint and process industries. Our zero cavity valves have a unique design in which a PTFE / MPTFE / CFT / Metal Cavity Filler are used to fill the void in the valve cavity between the body, ball and seat. These cavities reduce the chances of residual particle contaminating multiple use line.
They are also used in slurry service and process that could solidify if left in closed valve body. These valves are only available in Full Bore construction. These rugged, versatile and high performance ball valves can meet NACE specification.


Areas of application

Chemical/ Pharmaceutical/ Food /Pharmaceutical/ Petrochemical/ Energy/ Plastics/ Oil and Gas /Cement and lubrication

Design
  • Full Bore body, avoids clogging and ensures smooth flow when handling slurries and solid.
  • Available fire-tested to API-607 Rev. 5
  • Design in compliance with ASME B16.34 / BS5351.
  • Available in two seat design (integral seat and cavity) or (separate seat and cavity)
  • Material compliance with NACE specification.
  • Blowout proof stem.
  • Low emission packing.
  • Low torque design
  • Standard High torque capable stem design and MOC (Duplex steel)
Stem Design Features
  • Full guided stem, with gland bearing
  • Three layer of advance stem sealing.
  • Extended stem available
  • Antistatic- Design
Leakage Test
• Class VI

Actuator mounting flange
• DIN/ISO 5211

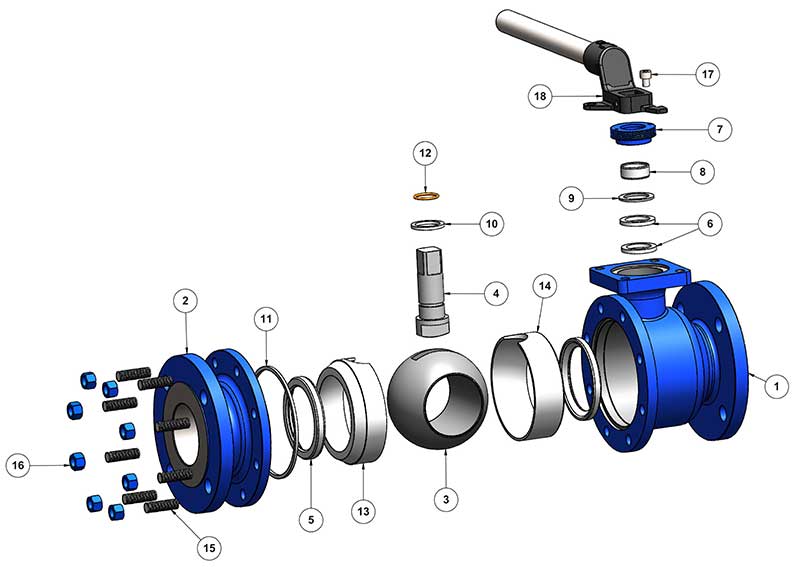

BOM



Bill of Material
SR.NO. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M ASTM A216 WCB 1
2 END CONN. ASTM A351 CF8M ASTM A216 WCB 1
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 SEAT SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRINDELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 1
12 STEM O-RING VITON VITON 1
13 CAVITY 1 PTFE PTFE 1
14 CAVITY 2 PTFE PTFE 1
15 STUD ASTM A193 GR.B8M ASTM A193 GR.B7 8
16 NUT ASTM A194 GR.8M ASTM A194 GR.2H 8
17 STOPER MS MS 1
18 LEVER MS MS 1

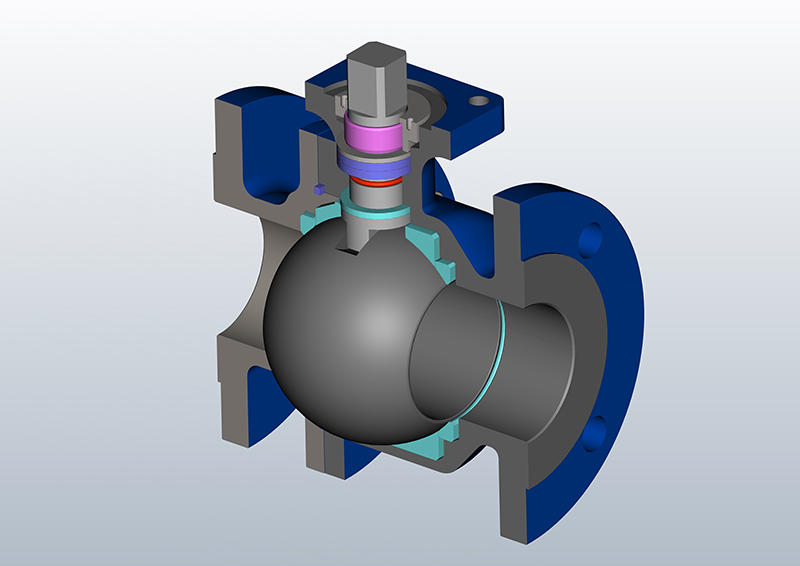

Key Features

  • The usual cavity between ball and housing in non- cavity free ball valves give cause for disturbance because residual products can crystallize, polymerize and so affect the function.
  • Clean, non- false product
  • No sediments of expensive products in the ball valve housing

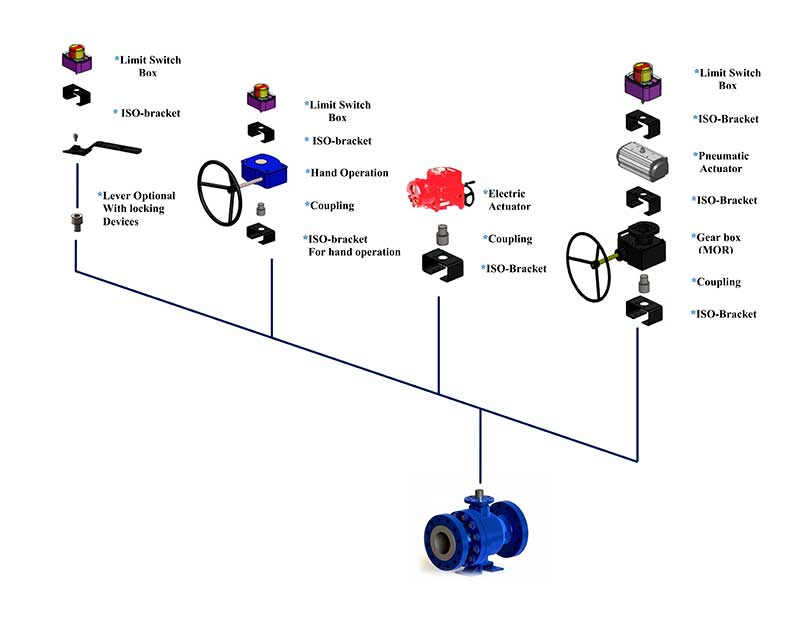

Actuation
