| TYPE : | Two Piece Screwed End |
| PORT : | Full & Regular (Reduced) Bore |
| SIZE : | 8mm to 15 mm NB |
| Pressure Rating : |
ASME #250 PN 420
|
| Temperature Range | 35 Deg C to 280 Deg C (Soft Seated) |
| Body Materials | Stainless Steel / Carbon Steel / Alloys |
| Design Standard | API 6D rev 23; ISO 17292 rev 2004 |
| Face to Face Dimension | As per manufacturer std |
| Testing | API 598 Rev 2009 |
| Sour Service | NACE MOR 0175 Rev 2009 |
| Documents | BS/EN 10204-3.1 REV 2004 |

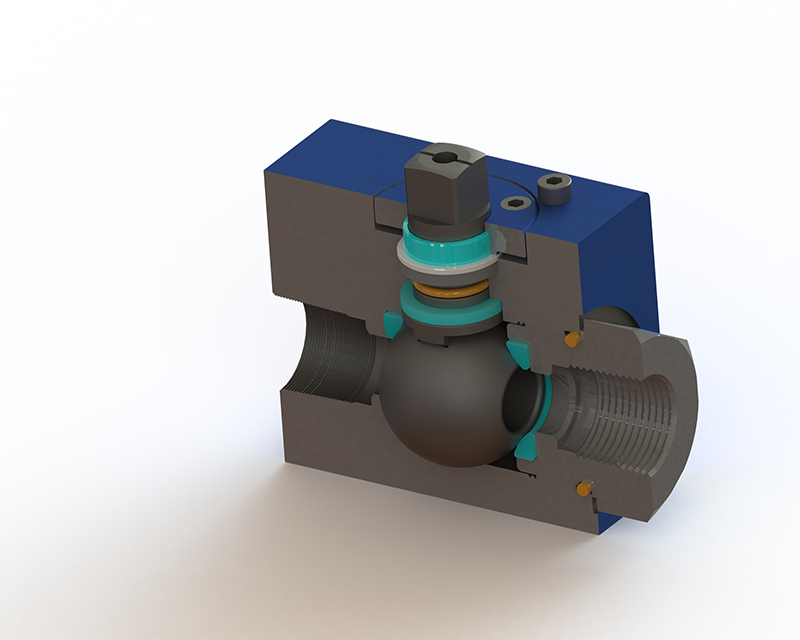

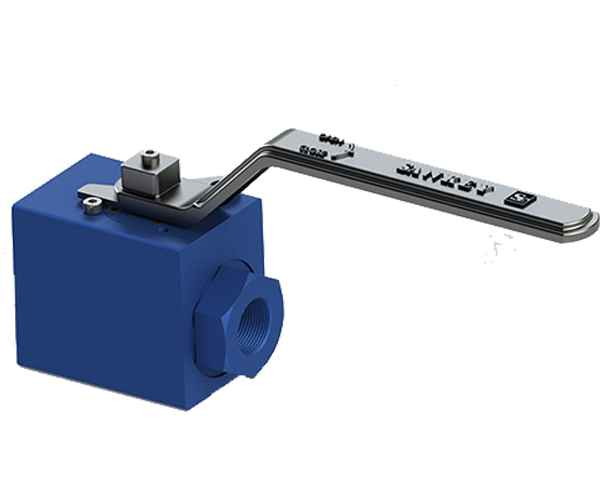

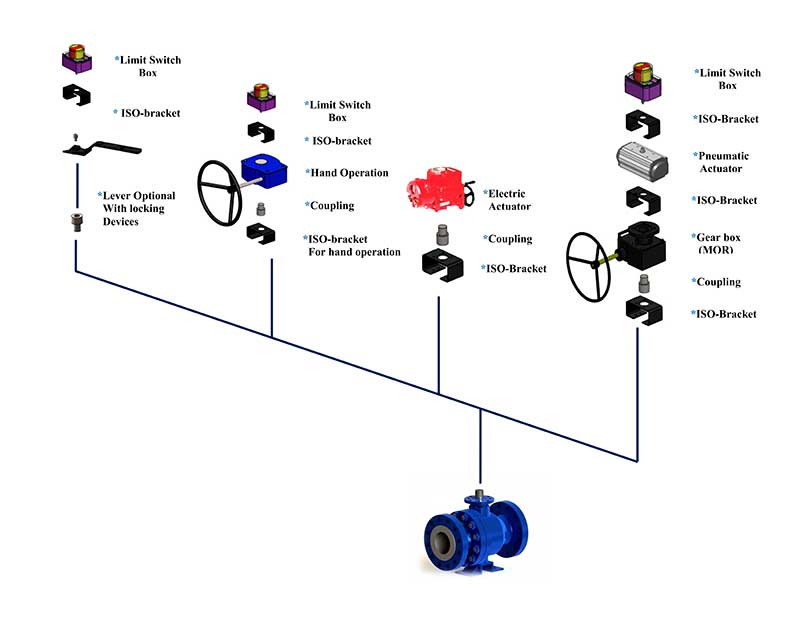

Sankey 91 series forgedball valve is a high-pressure ball valve designed for the tough and rugged standard of the of instrumentation market in a 10000-psi body configuration.
Areas of applicationChemical/ Pharmaceutical/ Food /Pharmaceutical/ Petrochemical/ Energy/ Plastics/ Oil and Gas /Cement and lubrication

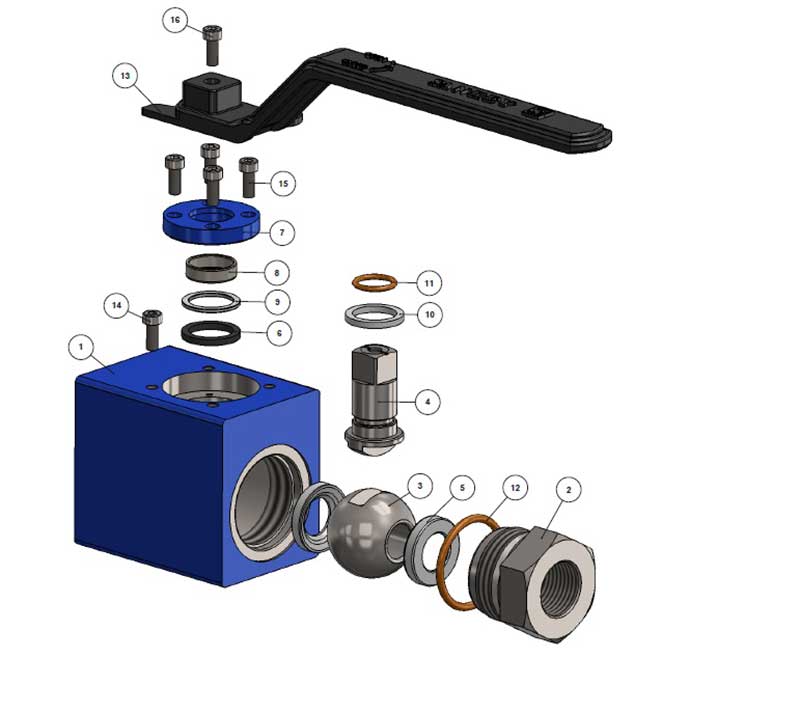

| Bill of Material | ||||
|---|---|---|---|---|
| SR.NO. | PART NAME | STAINLESS STEEL | CARBON STEEL | QTY |
| 1 | BODY MACHINING | ASTM A479 SS316 | A105 | 1 |
| 2 | END ADAPTOR | ASTM A479 SS316 | A105 | 1 |
| 3 | BALL | ASTM A276 SS316 | ASTM A276 SS316 | 1 |
| 4 | STEM | ASTM A479 SS316 | ASTM A479 SS316 | 1 |
| 5 | SEAT | PTFE | PTFE | 2 |
| 6 | SEAT SEAL | GRAPHITE | GRAPHITE | 1 |
| 7 | GLAND | SS316 | SS316 | 1 |
| 8 | GLAND BEARING | DELRIN | MS | 1 |
| 9 | SPACER | SS316 | SS316 | 1 |
| 10 | THRUST WASHER | GFT | GFT | 1 |
| 11 | STEM O-RING | VITON | VITON | 1 |
| 12 | END ADAPTER O-RING | VITON | VITON | 1 |
| 13 | LEVER | SS410 | SS410 | 1 |
| 14 | STOPER | MS | MS | 1 |
| 15 | ALLEN BOLT | HIGH TENSILE | HIGH TENSILE | 4 |
| 16 | ALLEN BOLT | MS | MS | 1 |
