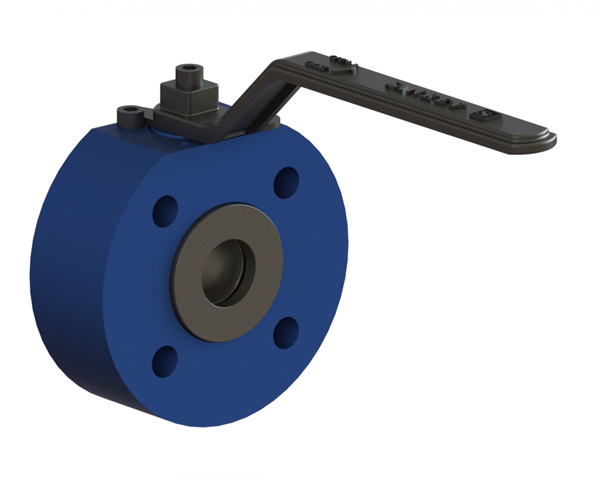

Wafer Type Floating Ball Valve

Enquire Now
Specifications
TYPE : Single Piece Wafer Type
PORT : Full Bore
SIZE : 15 mm to 100mm NB
Pressure Rating :
ASME #150 PN 20
ASME #300 PN 50
ASME #600 PN 100
Temperature Range 35 Deg C to 280 Deg C (Soft Seated)
Body Materials Stainless Steel / Carbon Steel / Alloys
Design Standard API 6D rev 23; ISO 17292 rev 2004
End Flanges ASME B16.5 2013
Face to Face Dimension As per manufacturer Std
Fire safe design API-607 Rev 2010
Testing API 598 Rev 2009
Sour Service NACE MOR 0175 Rev 2009
Documents BS/EN 10204-3.1 REV 2004
Other Information

WAFER BALL VALVE

SANKEY wafer ball valves are ideally suited to applications where space is at a premiumprovide plus all the benefits of flanged ball valve while reducing the cost and weight. The valve can be installed between flanges with help of bolts.
Our wafer ball valve is normally one-piece design and floating ball type, and are available in both cast and forged construction in sizes ranging from DN15 to DN 100, in #150 to #900 pressure rating.


Valve Application

Process Skids / hydraulic application / Transport vessels / Reactor.


Areas of application

Chemical/ Pharmaceutical /Petrochemical / Hydraulics


Media

Gases /Fluids /Oil / Steam / Paint /


Design
  • Wafer Valve body, short face to face dimension.
  • Fire safe approved (API-607).
  • Cavity free (Available)
  • Full bore
  • Antistatic design
  • Anti-blowout stem design
  • Unique push fit design (easy maintainability/ low torque)
  • Adjustable and maintenance free stem sealing withO-ring
Design Per Customer Requirements
  • Metal to metal sealing system for high pressure, high temperature and abrasive operating conditions
  • Ball valve design customizable to special vessel flanges
  • Extended stem
  • Metal seated available (High temperature application)
Leakage Test
• Acc. To EN 12266-1 leak rate A

Actuator mounting flange
• DIN/ISO 5211

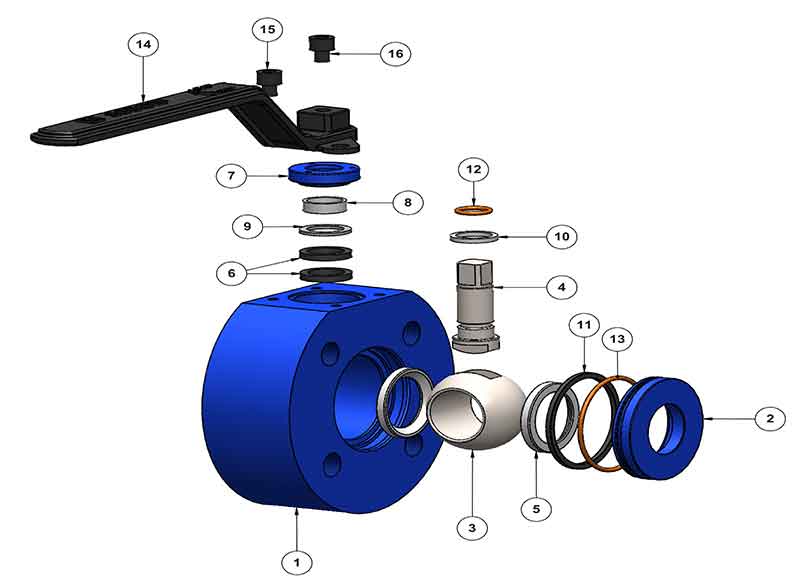

BOM



Bill of Material
SR.NO. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A479 SS316 A105 1
2 INSERT ASTM A479 SS316 A105 1
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 STEM SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 1
12 STEM O-RING VITON VITON 1
13 END CONN. O-RING VITON VITON 1
14 LEVER MS MS 1
15 STOPER MS MS 2
16 ALLEN BOLT MS MS 1

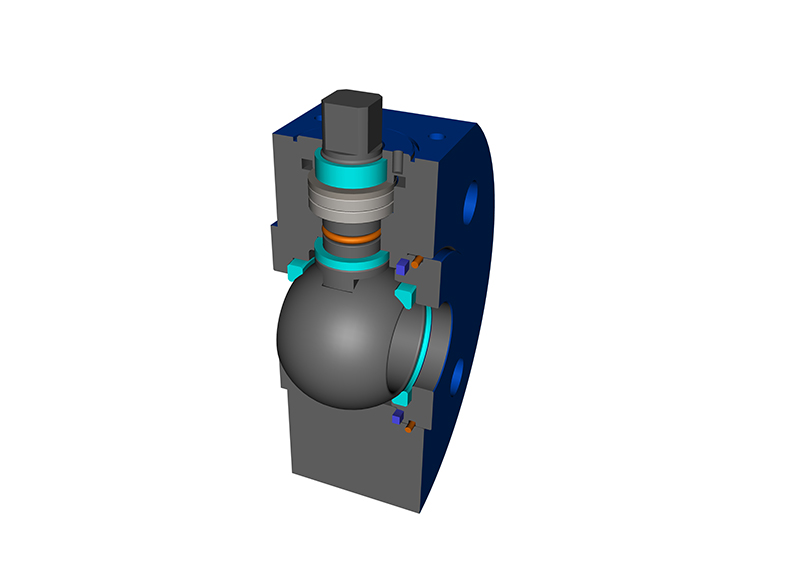

Key Features

Cavity free

The usual cavity between ball and housing in non- cavity free ball valves give cause for disturbance because residual products can crystallize, polymerize and so affect the function.

  • Clean, non- false product
  • No sediments of expensive products in the ball valve housing

Push Fit Insert design

Because of the further distance from the actuator mounting flange to the vessel, it makes the automation of the ball valve and isolation of the vessel very convenient.

  • Easy maintenance, quick dismantling, assembly thus fast turnaround time for the valve
  • Low torque design
  • Avoids unnecessary load on the seat and seals

Fire-safe tested and approved

SANKEY Wafer ball valves of the WF series have been tested successfully per British Standard BS 6755 and API-607.The material utilized for the soft seals in "fire-safe" valves remains dependent upon the required chemical resistance to suit the fluid, the application and operation conditions.

When fire does break out, it is important that it does not spread through failures in pipe-work systems. Even under the most extreme conditions shut-off valves provide :

  • Secure Operation
  • Reliable Sealing in shut-off position
  • Reliable Sealing to the outside
