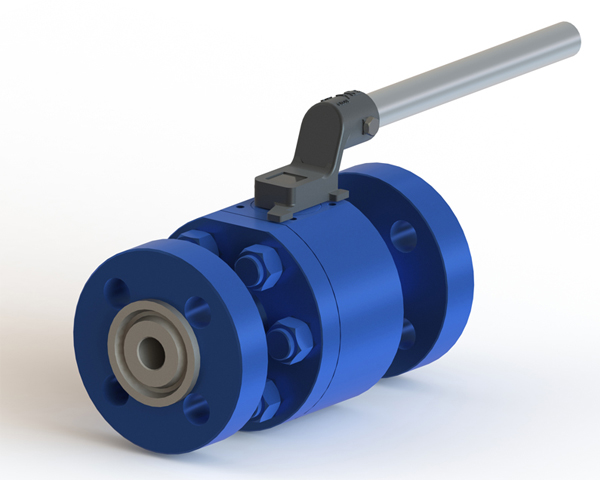

2 Piece High Pressure Ball Valve

Enquire Now
Specifications
TYPE : Two Piece Floating High Pressure Ball Valve
PORT : Full Bore
SIZE : 15 mm to 40mm NB
Pressure Rating :
ASME #2500 PN 450
Temperature Range 35 Deg C to 280 Deg C (Soft Seated)
Body Materials Stainless Steel / Carbon Steel / Alloys
Design Standard API 6D rev 23; ISO 17292 rev 2004
End Flanges ASME B16.5 2013
Face to Face Dimension ASME B16.10 Rev 2009
Fire safe design API-607 Rev 2010
Testing API 598 Rev 2009
Sour Service NACE MOR 0175 Rev 2009
Documents BS/EN 10204-3.1 REV 2004
Other Information
Technical Details

SANKEY Series 90 valves are robust two-piece ball valves in the industry. With advanced seat and seal materials, the Triad rating can be extended to handle service pressures to 450 bars and a temperature 250 Deg C.

All features of the standard Sankey Valves are present in the series 90 design including a heavy robust center section tapped for full hex head cap screws, Tertiary stem sealing design, body seals, anti-static protection and locking safety handles. As with most SANKEY valve designs, our valve comes standard with a top flange designed for ease of actuator mounting.


Areas of application

Pharmaceutical/ Petrochemical/ Energy/ Plastics/ Oil and Gas /Cement and lubrication

Design
  • Solid Forged body, For All available NDT testing.
  • Available fire-tested to API-607 Rev. 5
  • Design in compliance with ASME B16.34 / BS5351.
  • Dual GFT thrust-washer prevents galling & prevents against deformation.
  • Valve Suitable for pressure up-to 450 bar
  • Blowout proof stem.
  • Low emission packing.
Stem Design Features
  • Full guided stem, with gland bearing
  • Three layer of advance stem sealing.
  • Independent stem rotation (rotation independent of gland nut)
  • Extended stem available
  • Double packed stuffing box design
  • Antistatic- Design
Leakage Test
• Class VI

Actuator mounting flange
• DIN/ISO 5211

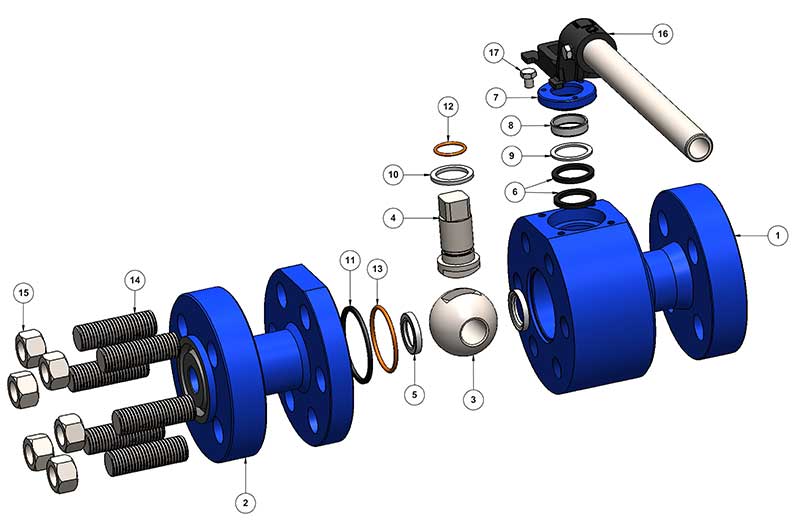

BOM

Bill of Material
SR.NO. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A479 SS316 A105 1
2 END CONN. ASTM A479 SS316 A105 1
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 SEAT SEAL GRAFOIL ROPE GRAFOIL ROPE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAFOIL GRAFOIL 1
12 STEM O-RING VITON VITON 1
13 END CONN. O-RING VITON VITON 1
14 STUD ASTM A193 GR. B8M ASTM A193 GR.B7 6
15 NUT ASTM A194 GR. 8M ASTM A194 GR.2H 6
16 LEVER SS410 SS410 1
17 STOPER MS MS 1

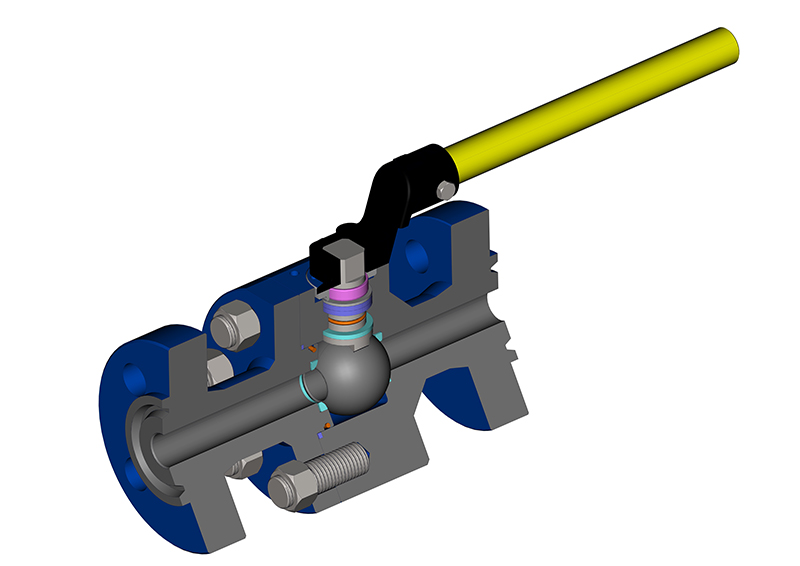

Key Features
  • 2 Piece bolted body design for ease of field service and maintenance
  • Forged Body, heavy duty construction
  • Available fire-tested to API-607 Rev. 5
  • Design in compliance with ASME B16.34 / BS5351
  • Extremely low torque for actuation savings
  • High Life cycle
  • Inert seals suitable for most services
  • Body coated for corrosion protection
  • GFT thrust-washer prevents galling & prevents against deformation
  • Material compliance with NACE specification
  • Blowout proof stem
  • Low emission packing

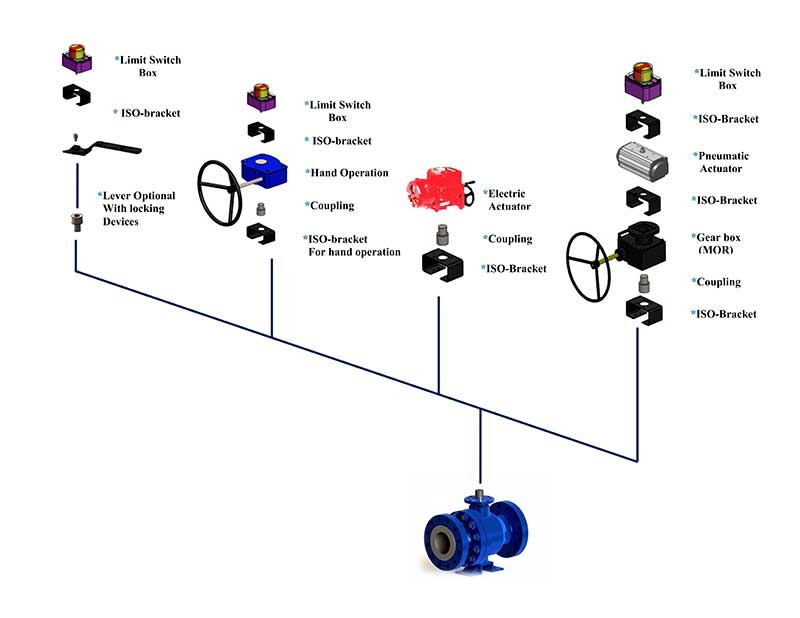

Actuation
