Limit Switch Box

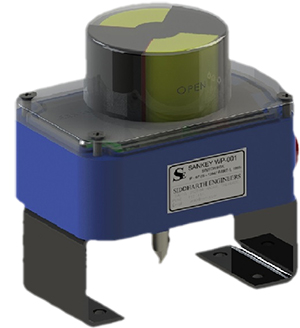

SANKEY Weather Proof Switch Boxes (WP-01)

WP-001 series position monitoring switch boxes which houses SPDT/DPDT (electro-mechanical switches) or non-contact type proximity sensors are rotary position indication devices design to integrate valve and a NAMUR rotary pneumatic actuator with a variety of mounting options, configuration, and internal switches and sensors.

The LSB has a unique design which is first of the kind in the industry and user friendly. Our LSB has a UV and corrosion resistance cover and inner ABS indicator.

Corrosion resistant pressure Die Cast aluminum body and polyester powder coating withstands salts spray test for minimum 500 hours.

Features & Benefits

  • Easy, precise cam set with no need for a setting tool.
  • Terminal block and socket type terminal strip with screws
  • Visual position indicator (Red for close, yellow for open).
  • High Strength, chemical resistant aluminum dome
  • IP-67, ‘O’ Ring sealed
  • Underwriter Laboratory (USA) approved PCB with multiple options

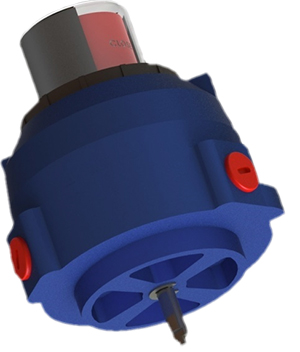

SANKEY Ex-Proof Switch Box (EX-01)

EX-001 Explosion proof switch box is an aluminum enclosure which houses SPDT/DPDT (electro-mechanical switches) or non-contact type proximity sensors. This enclosure is made up of 2 parts i.e, top and bottom. Bottom has male threads and top female threads. Top is screwed on to the bottom and ‘O’ ring in between top and bottom takes care of ingress protection.

The LSB has a unique design which is first of the kind in the industry and user friendly. Our LSB has a UV and corrosion resistance cover and inner ABS indicator.

Features & Benefits

  • Easy, precise cam set with no need for a setting tool.
  • II-A , II-B certified
  • Terminal block and socket type terminal strip with screws
  • Visual position indicator (Red for close, yellow for open).
  • High Strength, chemical resistant aluminium Body.
  • Two Conduit entry 1/2” NPT (F)
